Measurement and motion are important concepts in science that help us understand the physical world. Measurement allows us to find the length, distance, and time of various objects and events, while motion helps us study how objects move. From measuring the length of a book to observing the movement of vehicles on the road, these concepts are used in everyday life. This chapter introduces students to basic methods of measurement and different types of motion in a simple and systematic way.
Measurement
What is Measurement?
Measurement is the process of comparing an unknown quantity with a known standard quantity. For example, when we measure the length of a table using a meter scale, we are comparing it with the standard unit of length, the meter. Measurement helps us express quantities accurately and uniformly.
Need for Standard Units
In earlier times, people used body parts such as hand spans, cubits, and footsteps to measure length. These methods were not reliable because body parts differ from person to person. As a result, measurements varied and caused confusion. To avoid this problem, standard units of measurement were introduced.
Standard Units of Measurement
A standard unit is a fixed quantity that is accepted everywhere. The International System of Units (SI Units) is followed worldwide.
SI unit of length: meter (m)
Other units of length:
centimeter (cm)
millimeter (mm)
kilometer (km)
Conversions:
1 meter = 100 centimeters
1 kilometer = 1000 meters
These standard units make measurement accurate and uniform.
Measuring Length
A meter scale is commonly used to measure length. While measuring, the scale should be placed straight along the object. The zero mark of the scale should coincide with one end of the object. The reading should be taken carefully to avoid errors.
If the zero mark is damaged, measurement can be taken from another mark and the initial reading can be subtracted.
Measuring Curved Length
Some objects, such as circular wires or curved paths, do not have straight shapes. To measure their length, a thread is placed along the curve. The length of the thread is then measured using a meter scale. This method helps in measuring curved lengths accurately.
Motion
What is Motion?
An object is said to be in motion if its position changes with time with respect to a fixed reference point. For example, a moving car, a flying bird, and a running child are all in motion. If an object does not change its position, it is said to be at rest.
Rest and Motion Are Relative
Rest and motion are not absolute terms. An object can be at rest with respect to one object and in motion with respect to another. For example, a person sitting in a moving bus is at rest relative to the bus but in motion relative to a person standing on the road.
Types of Motion
Objects can move in different ways. Based on their movement, motion can be classified into different types.
Rectilinear Motion
When an object moves along a straight line, it is said to have rectilinear motion.
Examples: a car moving on a straight road, a falling stone.
Circular Motion
When an object moves along a circular path, it is said to have circular motion.
Examples: hands of a clock, blades of a fan.
Rotational Motion
When an object rotates about a fixed axis, it shows rotational motion.
Examples: spinning top, rotating fan.
Periodic Motion
A motion that repeats itself at equal intervals of time is called periodic motion.
Examples: swinging pendulum, motion of Earth around the Sun.
Oscillatory Motion
When an object moves to and fro about a fixed position, it is said to have oscillatory motion.
Example: a swinging pendulum.
Distance and Speed
Distance
Distance is the total length of the path travelled by an object. It is measured in meters or kilometers.
Speed
Speed is defined as the distance travelled by an object in unit time.
Speed
=
Distance
Time
Speed=
Time
Distance
The SI unit of speed is meter per second (m/s).
Uniform and Non-Uniform Motion
Uniform motion:
When an object covers equal distances in equal intervals of time.
Example: a car moving at constant speed.
Non-uniform motion:
When an object covers unequal distances in equal intervals of time.
Example: a bus moving in traffic.
Measurement of Time
Importance of Measuring Time
Time measurement helps us know how long an event lasts. It is important for studying motion and for daily activities.
Units of Time
The SI unit of time is second (s).
Other units include:
minute
hour
1 minute = 60 seconds
1 hour = 60 minutes

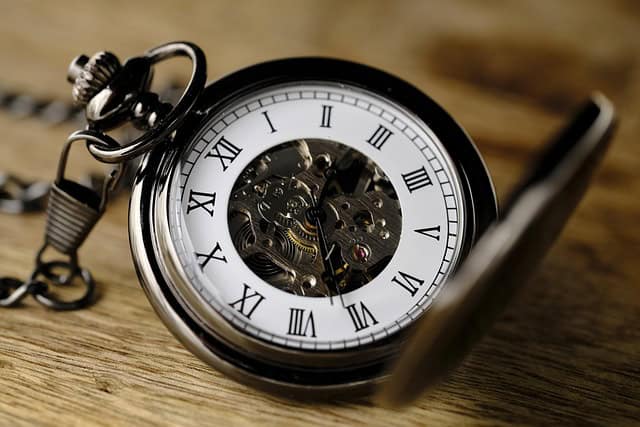

Devices Used to Measure Time
Different devices are used to measure time, such as:
clocks
watches
stopwatches
Stopwatches are commonly used in sports to measure short time intervals.
Simple Pendulum
A simple pendulum consists of a small metal bob suspended by a thread from a fixed support. When displaced and released, it moves to and fro, showing oscillatory and periodic motion.
The time period of a pendulum is the time taken to complete one oscillation.
Conclusion
Measurement and motion are basic yet essential topics in science. Measurement helps us find accurate values of length, distance, and time, while motion explains how objects move in different ways. Understanding these concepts helps students observe their surroundings scientifically and prepares them for advanced topics in physics. This chapter forms a strong foundation for learning science in higher classes and for understanding everyday phenomena.
